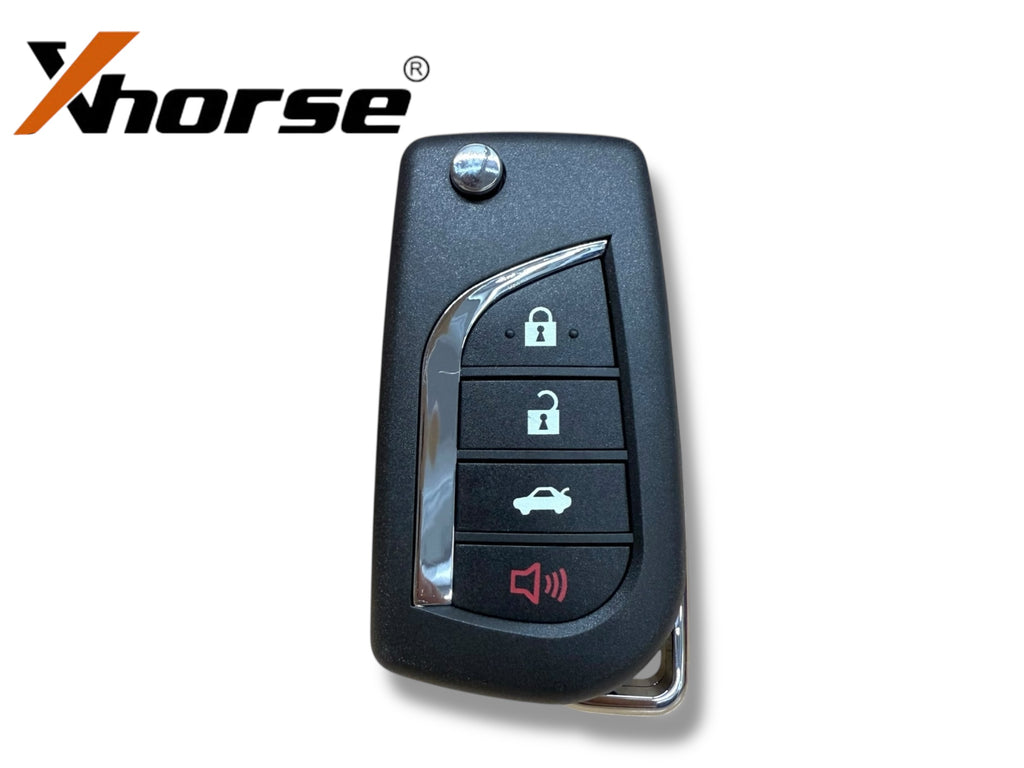

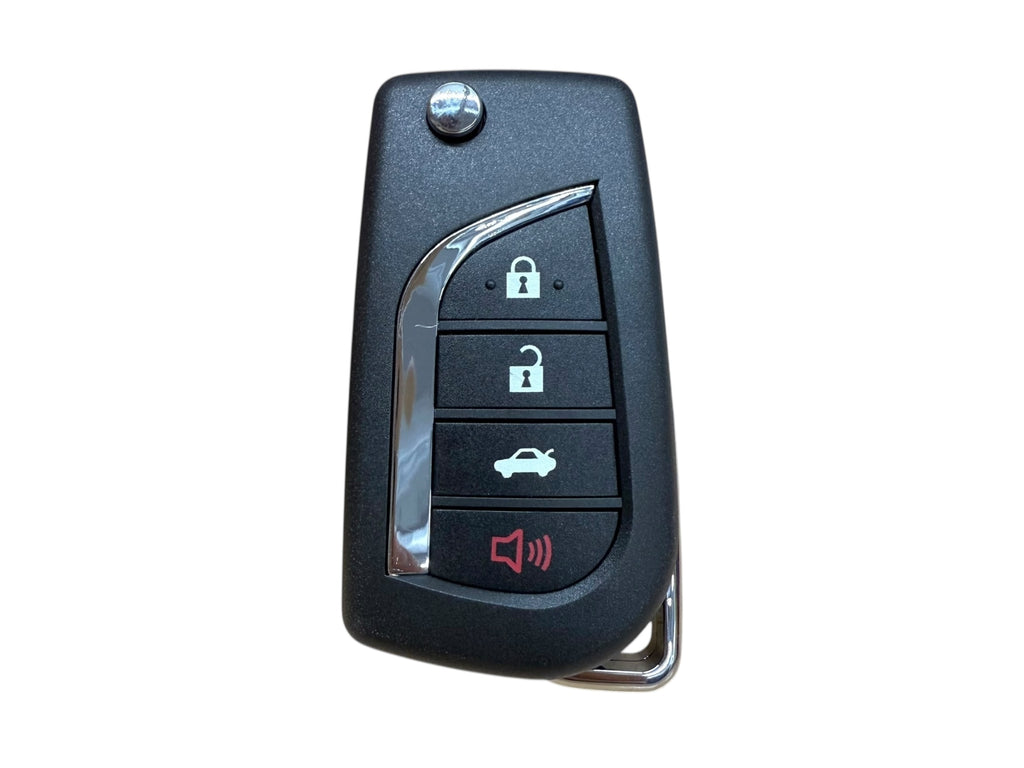

Xhorse Toyota Style Universal Remote Flip Key 4-Button for VVDI Key Tool (Wired) XKTO10EN
1/3
  • Xhorse Toyota Style Universal Remote Flip Key 4-Button for VVDI Key Tool (Wired) XKTO10EN
  • Xhorse Toyota Style Universal Remote Flip Key 4-Button for VVDI Key Tool (Wired) XKTO10EN
  • Xhorse Toyota Style Universal Remote Flip Key 4-Button for VVDI Key Tool (Wired) XKTO10EN
Xhorse Toyota Style Universal Remote Flip Key 4-Button for VVDI Key Tool (Wired) XKTO10EN

Xhorse Toyota Style Universal Remote Flip Key 4-Button for VVDI Key Tool (Wired) XKTO10EN

Product Code: 5398
$11.99

Free shipping over $100

30-day returns

ITEM DESCRIPTION

THE UNIVERSAL FLIP REMOTE FOR SALE IS GENUINE XHORSE.

  • 1 REMOTE ONLY WITH PIN

  • PART NUMBER: XKTO10EN

  • 4 BUTTONS: LOCK, UNLOCK, TRUNK, PANIC

  • TOYOTA KNIFE STYLE

  • WIRED CONNECTION

INSTRUCTIONS FOR USE

  1. Open the remote and remove the battery.

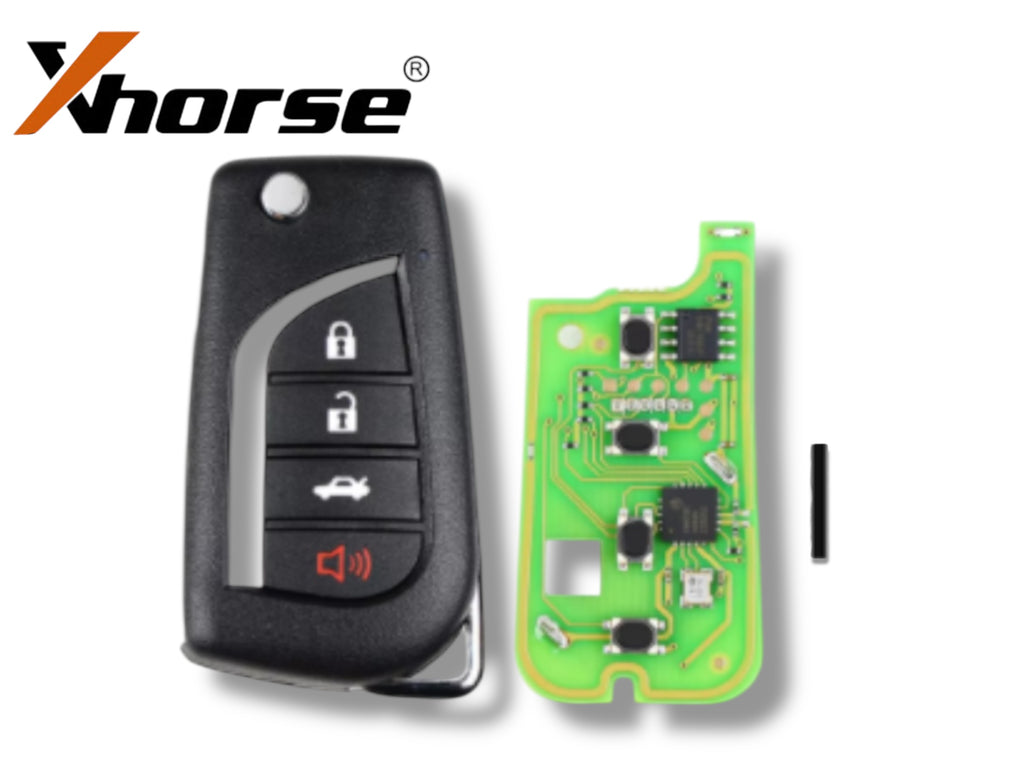

  2. Connect the data cable to the white connector on the remote's PCB board, then plug the other end into your VVDI Key Tool Mini or Max.

  3. On the VVDI Key Tool, go to "Produce Remote" and select the appropriate remote model to generate.

  4. Disconnect the cable, reinsert the battery, and reassemble the remote. Install the correct chip and key blade for your specific vehicle application.

  5. Program the remote to the vehicle as you would with an OEM remote.

IMPORTANT NOTES

  • Battery and key blade are not included. A CR1620 battery is required and must be installed by the user.

  • This remote will not work with the original VVDI Key Tool due to discontinued support from Xhorse. Attempting to use the original tool may result in false region lock errors.

For Key Tool Mini or Max Users:
If you experience a region lock issue, submit your device’s serial number through the Xhorse app and request that the region lock be removed. Processing typically takes about 24 hours.
