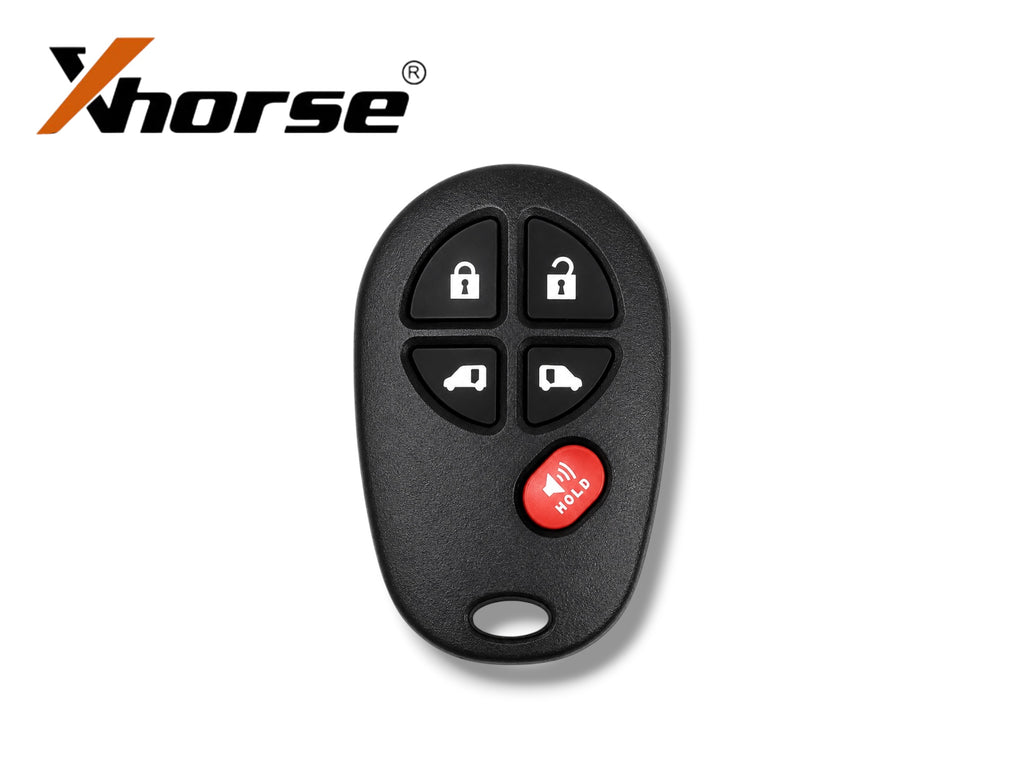

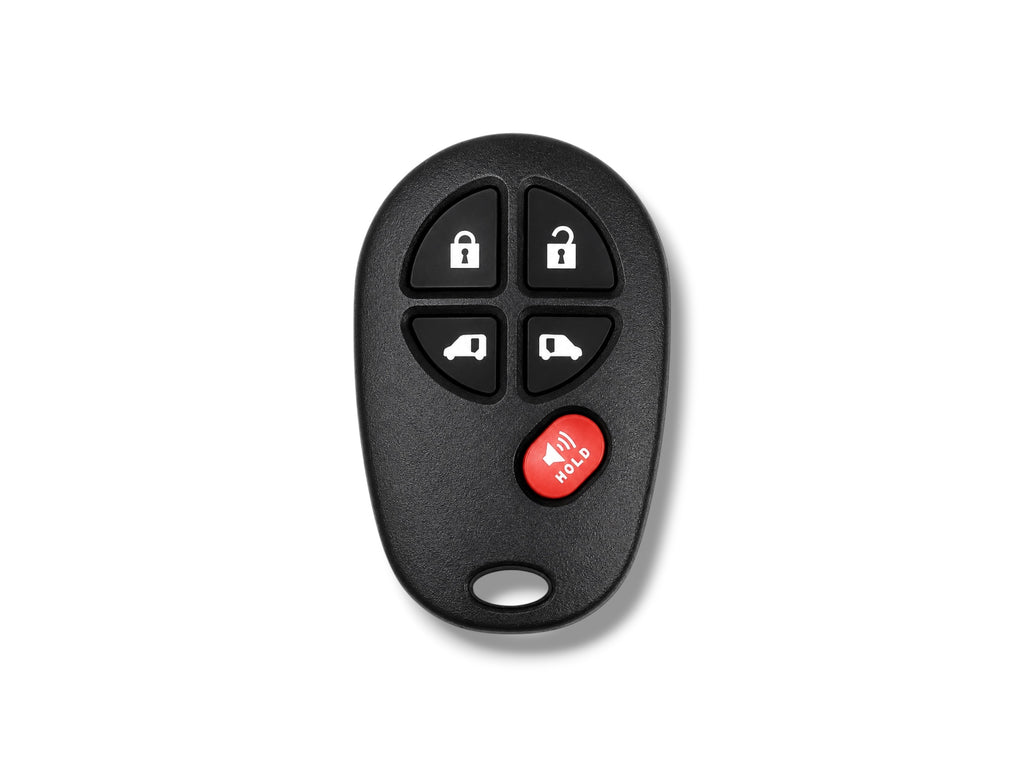

Xhorse - Universal Keyless Entry Remote 5-Button Toyota Style - XKTO08EN

ITEM DESCRIPTION

The Xhorse Toyota Style 5-Button Universal Wired Remote for sale is new.

SPECIFICATIONS

• Condition: Brand New

• Manufacturer: Xhorse

• Model: XKTO08EN

• Remote Style: Toyota

• Buttons: Lock, Unlock, Left Sliding Door, Right Sliding Door, Panic

• Battery: CR2032 (Not Included)

• Connection Type: Wired

• Compatible Programming Tool: Xhorse VVDI Key Tool Series

INCLUDED

• (1) Xhorse Toyota Style 5-Button Universal Wired Remote (Model XKTO08EN)

Battery is not included.

GENERATION INSTRUCTIONS

1. Open the remote and remove the battery.

2. Connect the data cable to the white connector on the remote circuit board.

3. Connect the cable to the Xhorse VVDI Key Tool.

4. Select Product Remote and generate the desired remote type.

5. Disconnect the cable.

6. Install a CR2032 battery.

7. Install the correct transponder chip and key blade for your application.

8. Program the remote to the vehicle following the appropriate OEM programming procedure.
