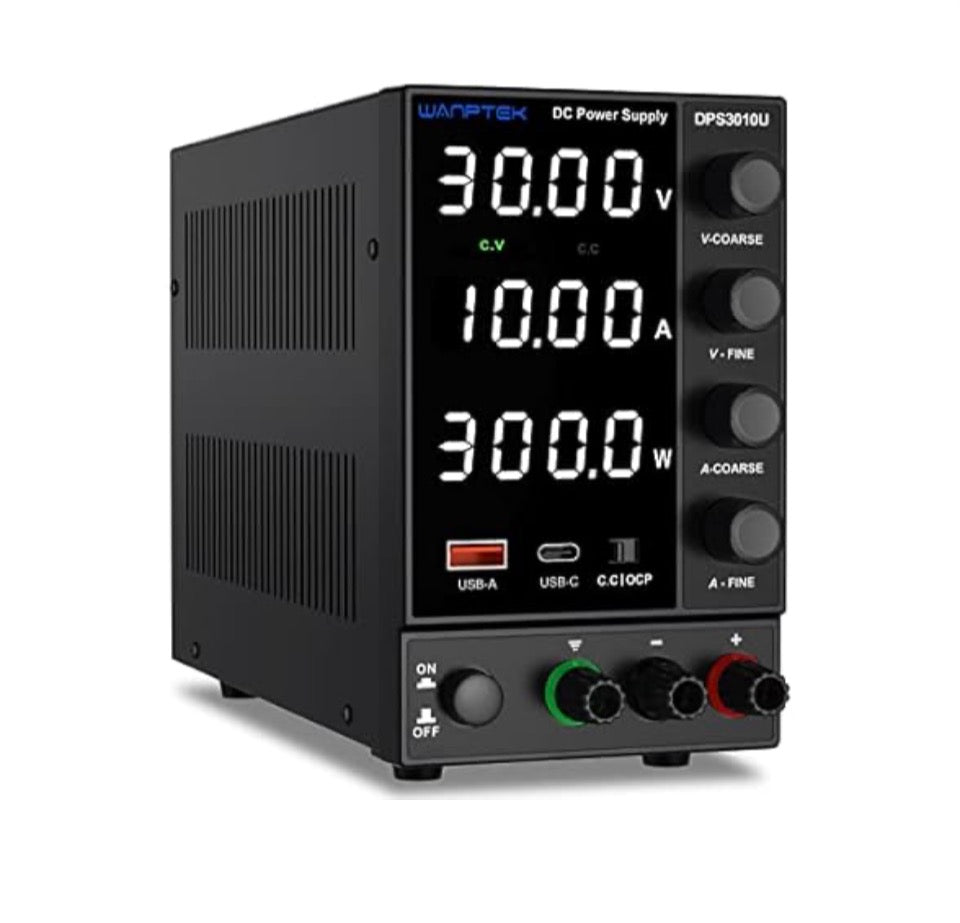

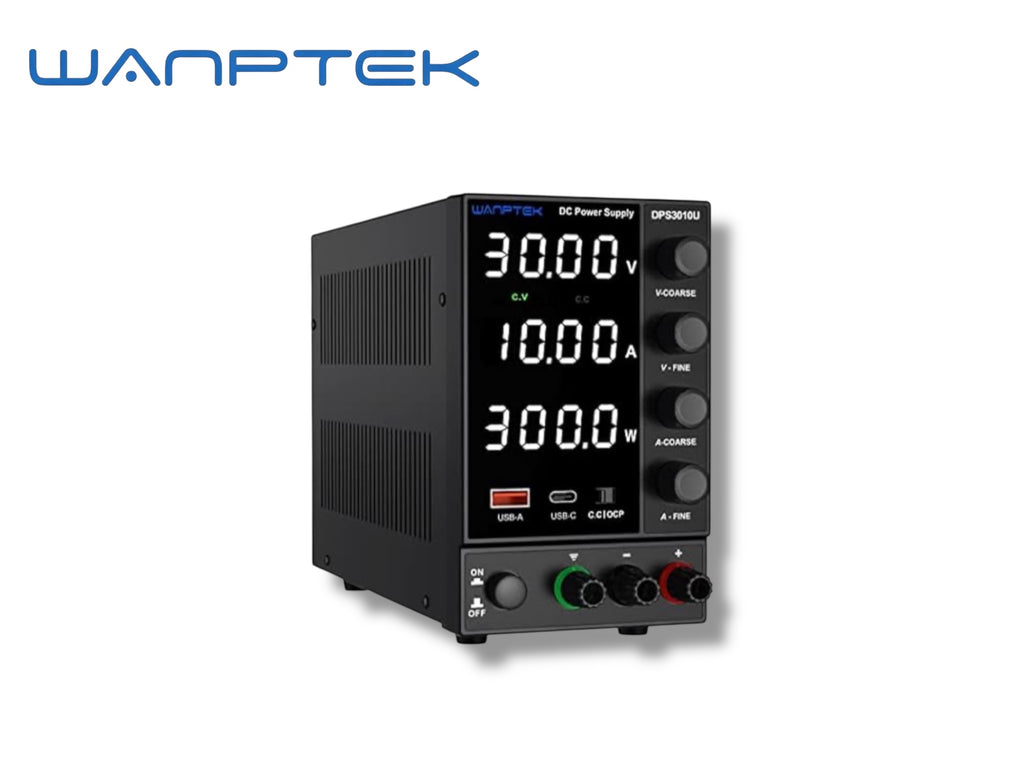

Wanptek - DC Variable Power Supply Adjustable 30V / 10A
Product Code: DPS3010U
$98.59
Free shipping over $100
30-day returns
Specifications
Specifications:
|
Brand |
WANPTEK |
|
Type |
DC Power Supply |
|
Model |
DPS3010U |
|
Color |
Black |
|
Output Power |
300W |
|
Output Voltage |
0 - 30V |
|
Output Current |
0 - 10A |
|
Auxiliary Functions |
USB-A/Type-C Fast Charging, Supporting Various Fast Charging Protocols |
|
Protection Mode |
Current Limiting Protection / Short Circuit Alarm Stop Output, Self-Recovery |
|

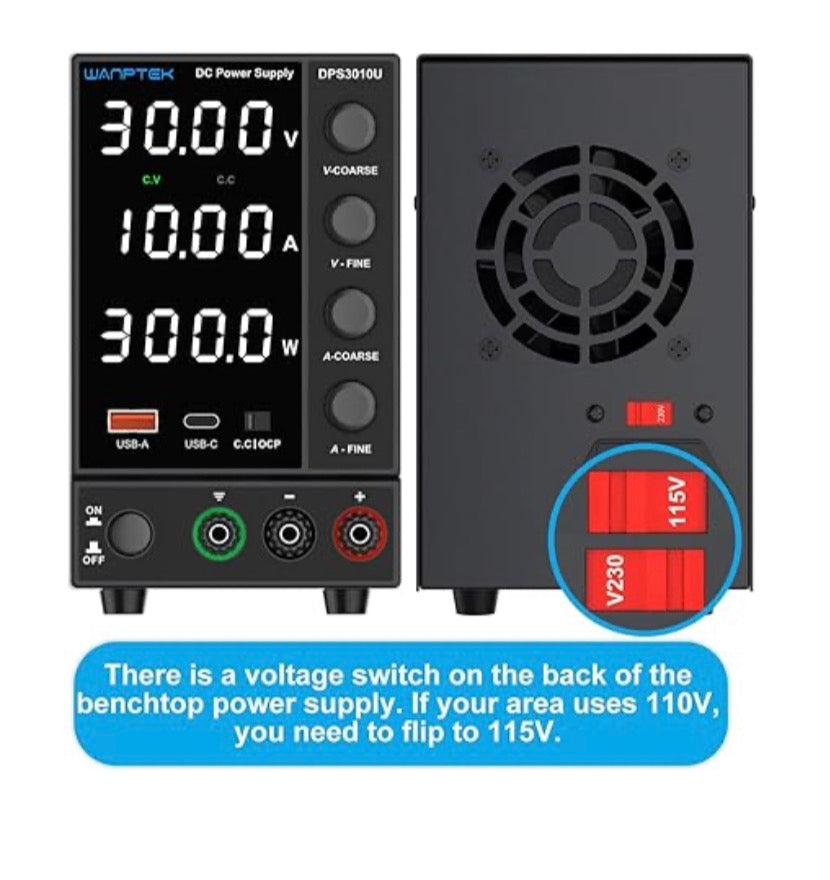

Input Voltage |
AC230V ± 10% 50Hz |
|
Working TEMP |
0 - 40 Celsius;Humidity:<80% RH |
|
Storage TEMP |
-10 - 70 Celsius;Humidity:<70% RH |
|
C.V |
|
|
Voltage Stability |
0.1%±3mV |
|
Load Stability |
0.2%±3mV |
|
Ripple Voltage |
≤ 0.5% Vp-p |
|
C.C |
|
|
Current Stability |
0.1%±3mA |
|
Load Stability |
0.2%±3mA |
|
Ripple Current |
≤ 0.5% Vp-p |
|
Recovery Time |
≤500μS |
|
Temperature Coefficient |
≤100ppm/℃ |
|
Display |
0.56 inch White Light 4-Digit Digital Tube Display |
|
Accuracy |
0.5% ± digit |
|
Resolution |
Voltage |
|
Current |
0.001A |
|
Product Weight |
1.2kg |
|
Package Weight |
1.6kg |
|
Product Size(L*W*H) |
190*90*145mm |
|
Package Size(L*W*H) |
265*135*195mm |
Features:
1.High Precision DC Regulated Power Supply
The DPS series product is a high-precision switch type DC regulated power supply with 3 windows and 4 positions display, which can simultaneously display voltage, current, and power. It is widely used for mobile phone repair, computer repair, school and production line use

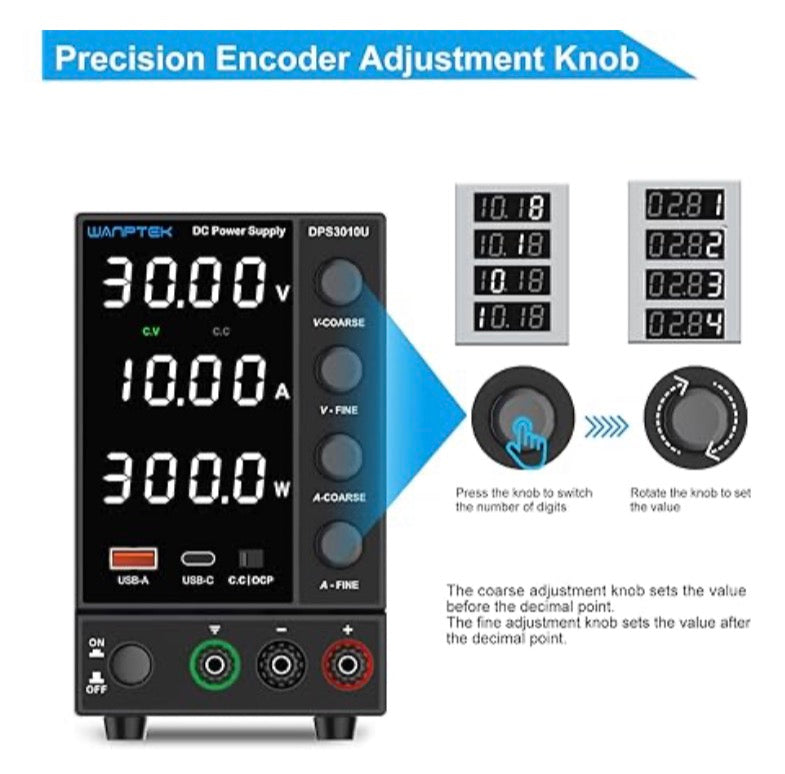

2.Encoder Adjustment, Safe Protection
Its output voltage and output current can be continuously adjustable using an encoder. The stability and ripple coefficient of the power supply are very good, and the machine has a perfect OCP short-circuit protection circuit. Temperature-controlled fan for heat dissipation, low noise, and long service life.

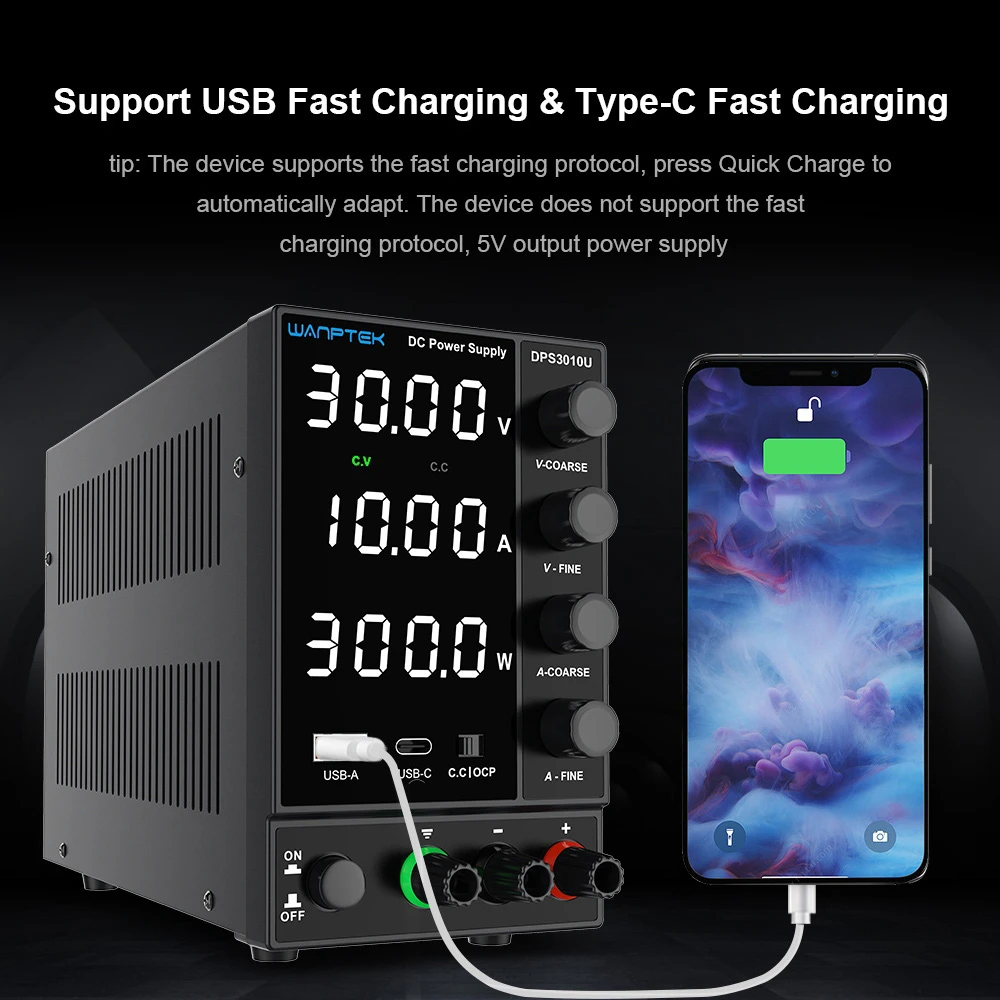

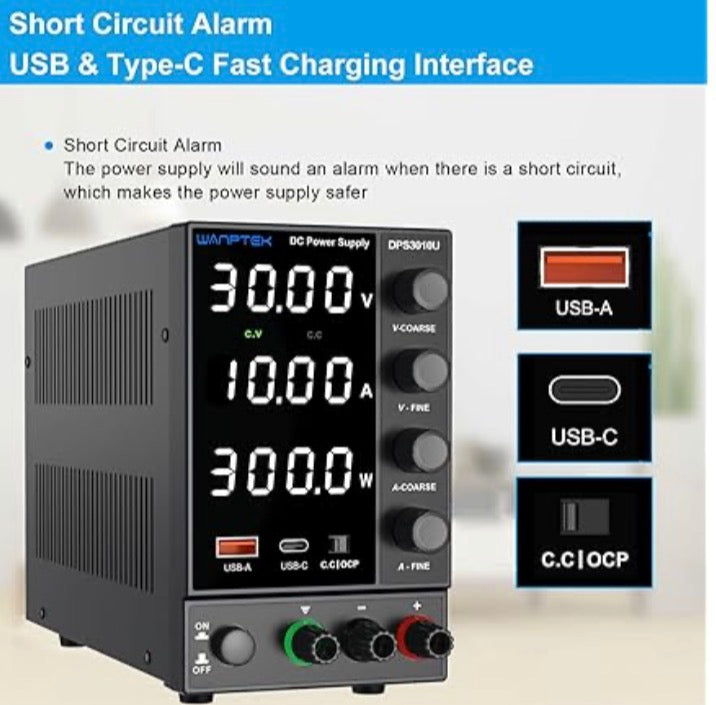

3.USB-A/Type-C Fast Charging
The auxiliary function includes USB-A/Type-C fast charging function. Its small size, beautiful design, convenient operation, and ability to work at full load for long periods are deeply loved by users.

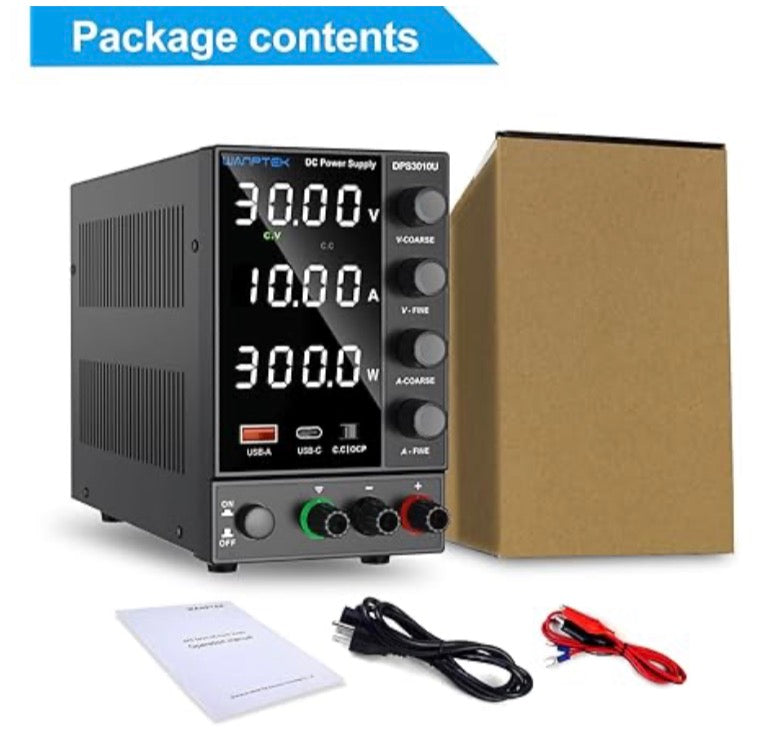

Package includes:
1 x 1 x DC Power Supply
1 x Power Cord
1 x Test Line
1 x User Manual
