MK3 - GM Saab Steering Lock Emulator Simulator PN: 12823804 / 32019685

ITEM DESCRIPTION

The electronic steering lock (ESL/ELV) emulator for sale is brand new and manufactured by MK3.

This steering lock emulator is designed as a replacement solution for a failed electronic steering column lock on select GM / Chevrolet / Saab applications.

The emulator simulates the operation of the original electronic steering lock and features lock/unlock sound simulation. According to the supplied manufacturer information, no programming or coding is required for supported applications.

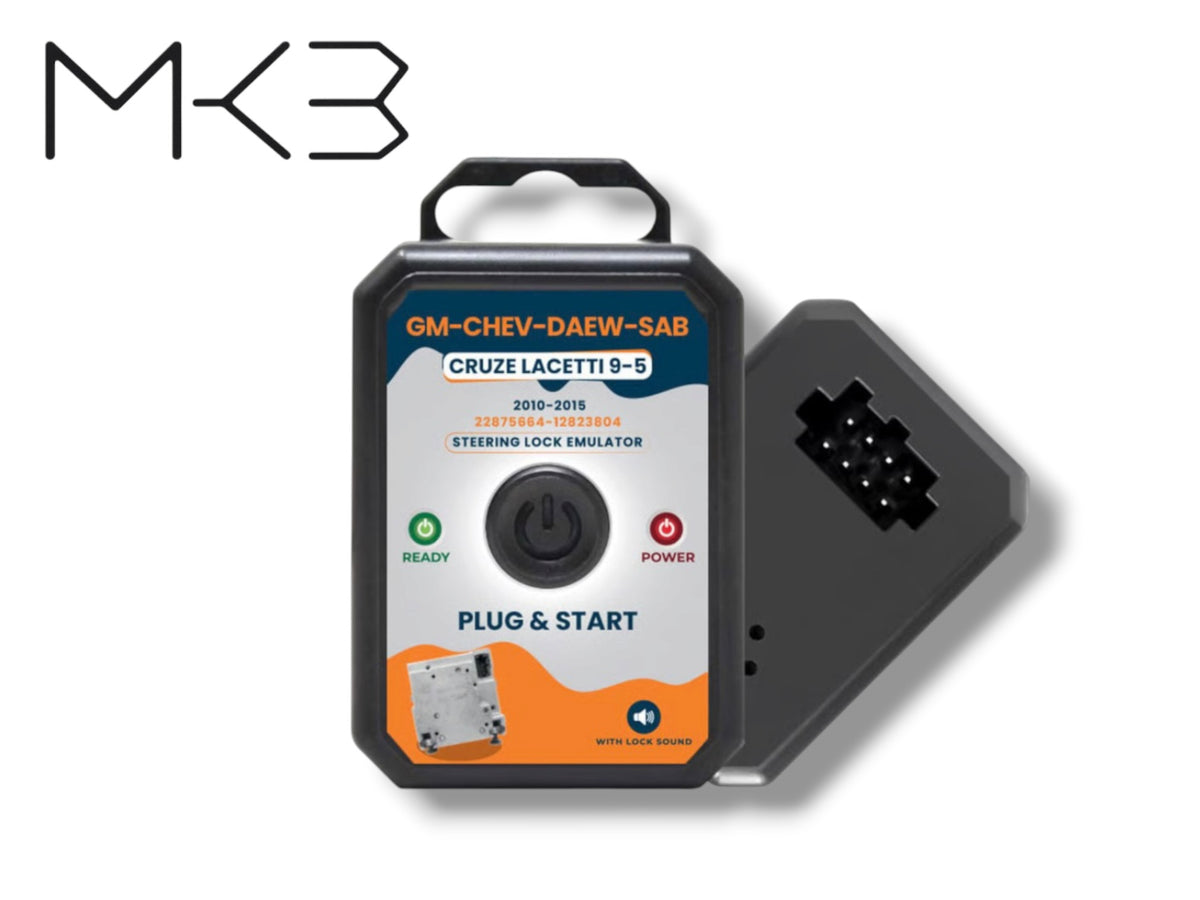

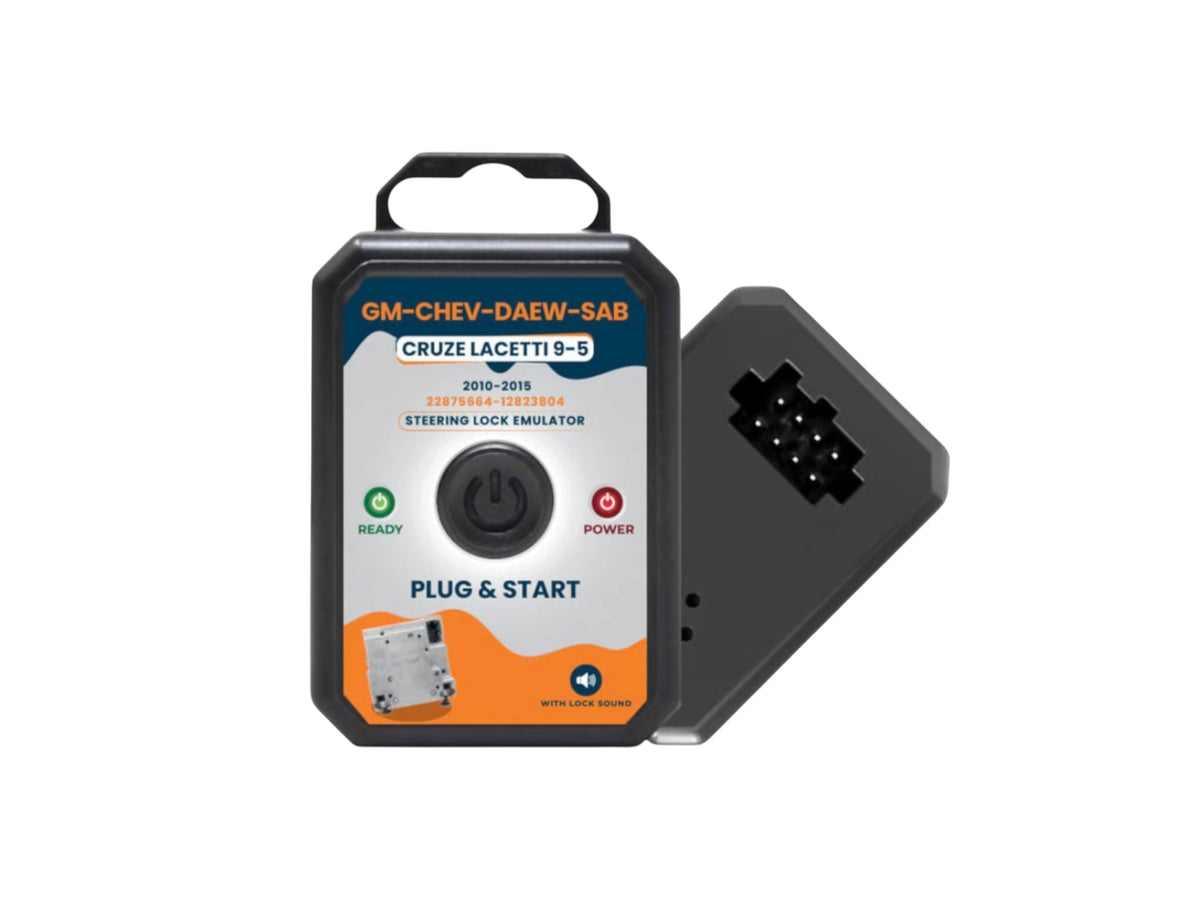

PRODUCT IMAGE

SPECIFICATIONS

• Condition: Brand New

• Product Type: Electronic Steering Lock Emulator / ESL / ELV Simulator

• Manufacturer: MK3

• MK3 Product Number: MK20120

• Programming Required: No

• Coding Required: No

• Lock Sound: Yes

• Connector Type: Original-Style Connector

• Weight: Approximately 44g

OEM / COMPATIBLE PART NUMBERS

• 12823804

• 22996231

• 23377962

• 23436820

• 32019685

VEHICLE FITMENT

CHEVROLET

• 2010–2015 – Cruze

• 2010–2015 – Lacetti

SAAB

• 2010–2012 – 9-5

LED STATUS INDICATOR

The emulator uses an LED to indicate steering-lock status:

• RED LED: Steering column lock is in the locked state

• GREEN LED: Steering column lock is in the unlocked state

INSTALLATION

1. Turn the vehicle completely off before installation.

2. Connect the emulator to the vehicle's steering-lock wiring/connector.

3. Make sure each connection corresponds to the pin numbers indicated on the emulator board.

4. If using the original ELV connector, the wiring must be connected to the corresponding numbered terminals on the emulator.

5. Once properly connected, the emulator is designed to simulate the electronic steering-lock operation.
