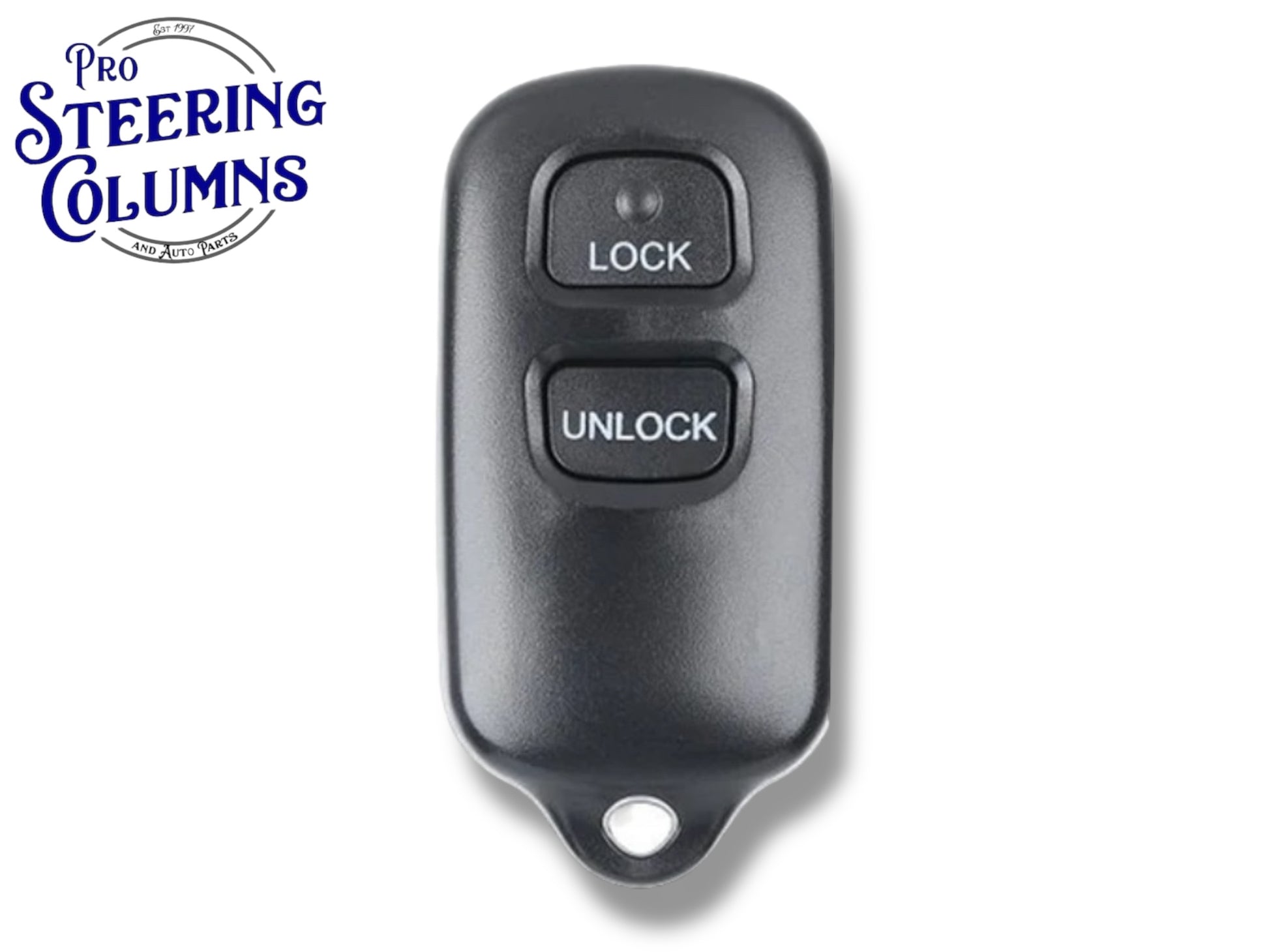

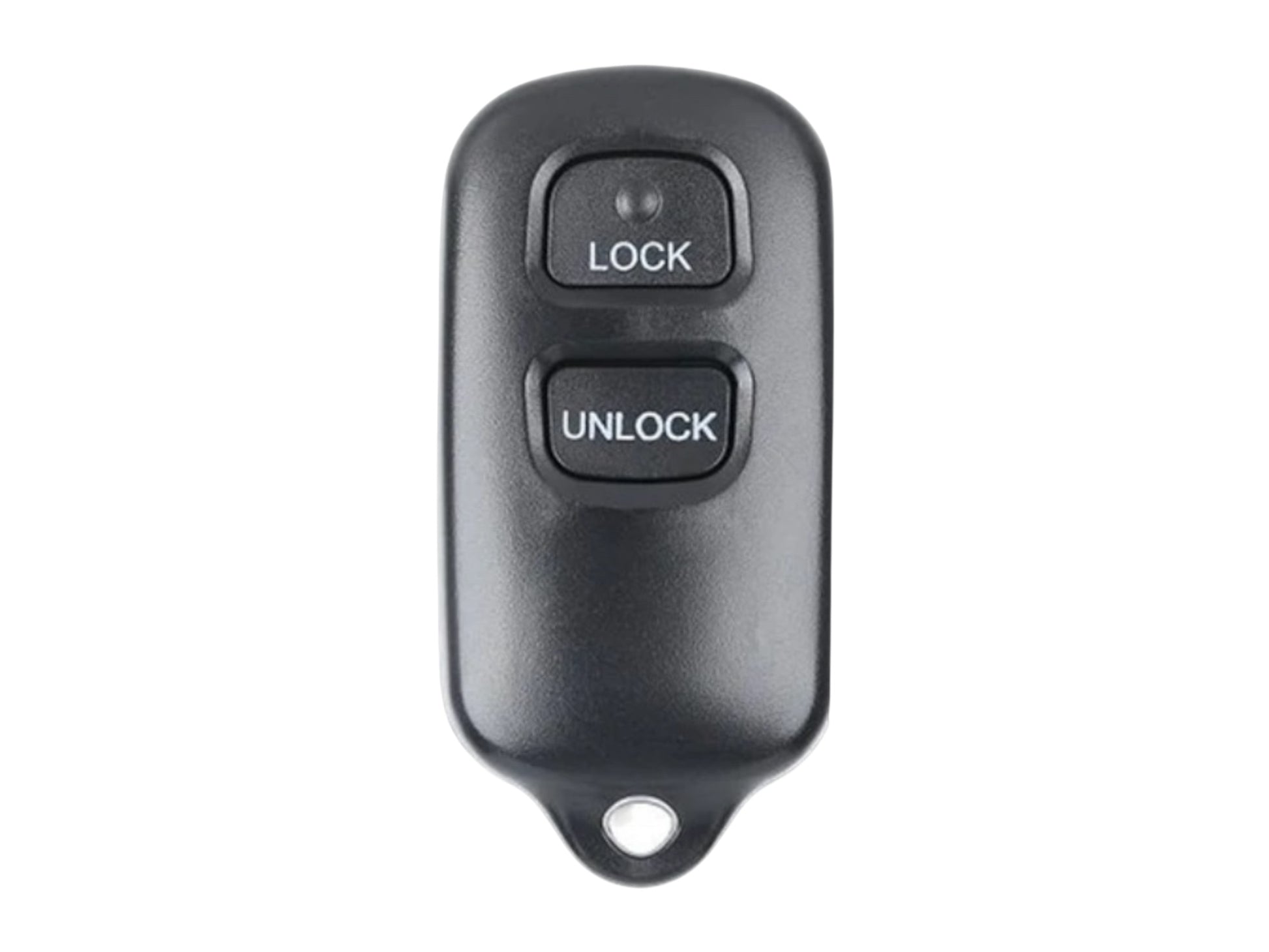

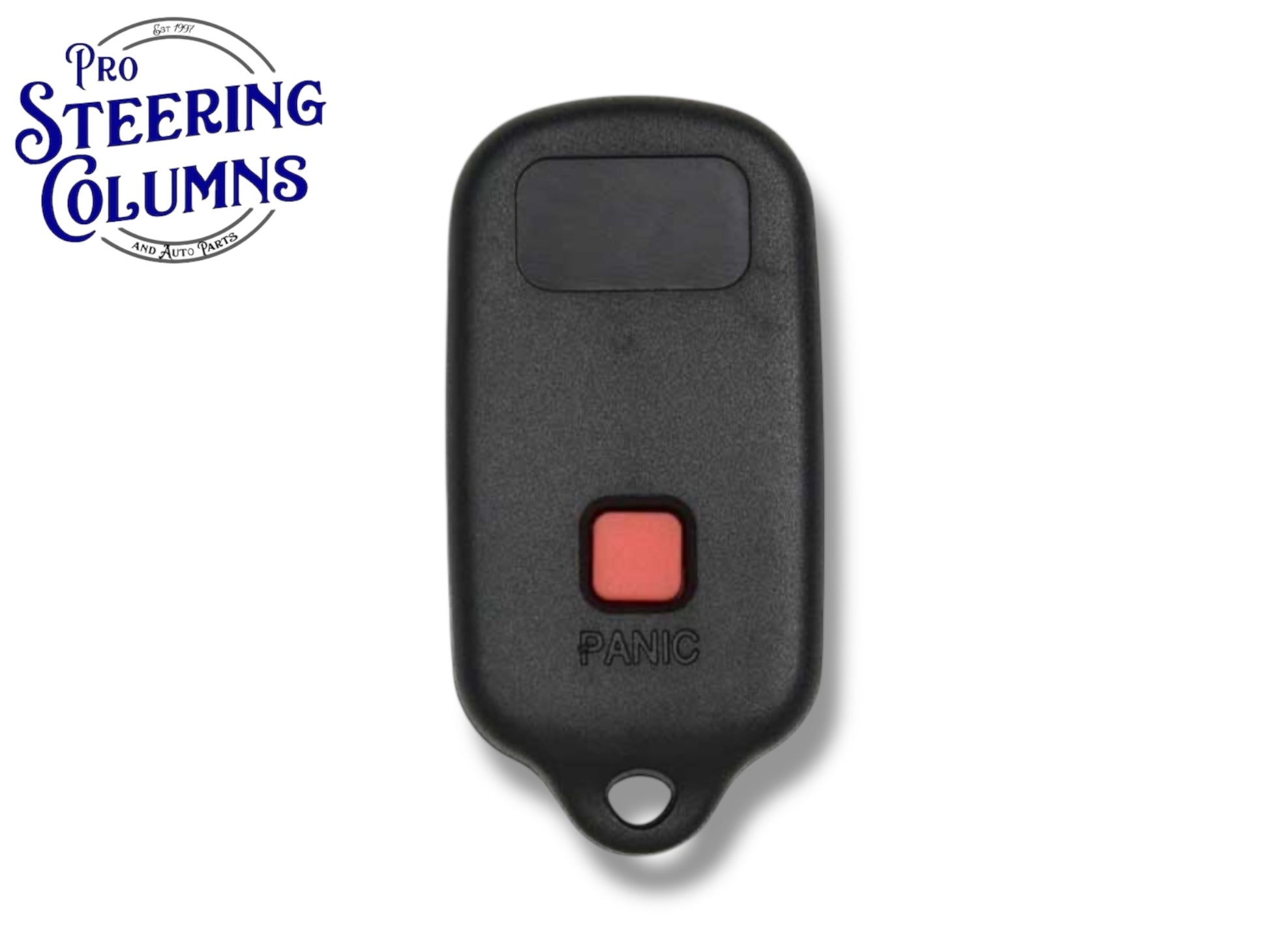

Brand New Aftermarket Replacement Key Fob
Includes: 1 Remote with Electronics and Battery Installed
FCC ID: GQ43VT14T
Frequency: 314 MHz
Battery: CR2032 (Pre-Installed)
Buttons: Lock, Unlock, Panic
Replaces Part Number: 89742-06010
Reusable: Yes
Compatible with the following vehicles:
2000–2006 Toyota Camry
2000–2003 Toyota Solara
1999–2003 Toyota Sienna
2003–2008 Toyota Corolla
2003–2008 Toyota Matrix
Step-by-Step Programming Instructions (On-Board):
Start with the key out of the ignition. Driver’s door must be open, all other doors closed, and driver’s door unlocked.
-
Within 5 seconds:
A. Insert the key into the ignition (Do not turn), then remove it.
B. Insert the key again (Do not turn), then remove it.
-
Within 40 seconds:
A. Close then open the driver’s door.
B. Close then open the driver’s door.
C. Insert the key into the ignition (Do not turn), then remove it.
-
Within 40 seconds:
A. Close then open the driver’s door.
B. Close then open the driver’s door.
C. Insert the key into the ignition and leave it in.
D. Close the driver’s door.
E. Turn the ignition to ON (do not start), then back to OFF.
F. Remove the key.
-
Within 3 seconds, the power door locks should lock then unlock automatically, confirming entry into programming mode.
If locks do not cycle, restart from step 1.
-
Within 40 seconds:
A. Press Lock and Unlock simultaneously on the remote for 1.5 seconds.
B. Immediately after, press and hold Lock for 2 seconds.
C. Door locks should cycle once to confirm successful programming.
If locks cycle twice, the remote was not accepted. Repeat step 6 for that remote.
Repeat for each remote being programmed.
Open driver’s door to exit programming mode.
Test all remotes.
